Alat uji titik leleh suatu bahan

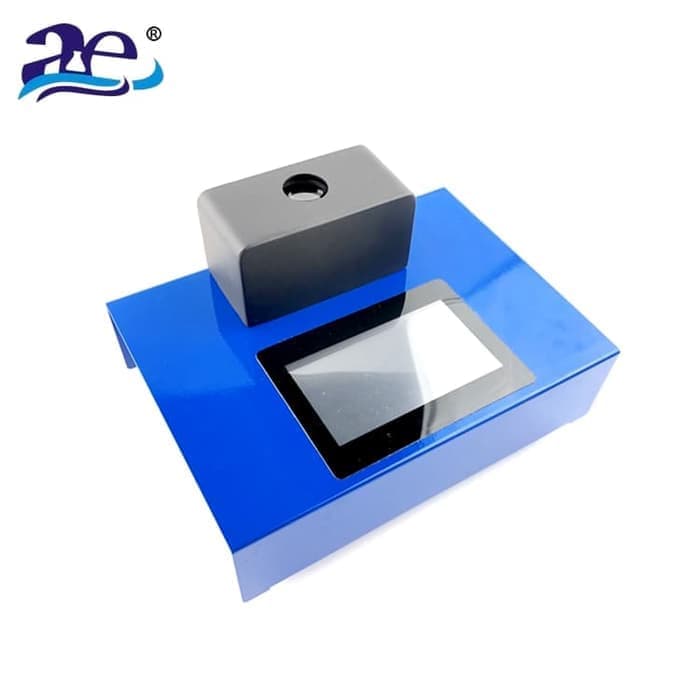

Color Touch Screen Digital Melting Point Apparatus

Product Description


Key Features:

1.Colorful Touch Screen Display.
2.Increase Temperature can easy setting from 0.1 to 10/min.
3•One time can test 3 samples. Temperature can reach to 320.
4.High resolution microscope lenses can observe sample clearly.
5.Built-in cooling fan can easy come down temperature and test next samples.
6.PID control temperature, fully closed design of furnace body to avoid any empyrosis for the user.

Applications:
Melting point device is widely using in chemical industry and medicine. It is a necessary instrument for the production of food, drugs, spices, dyes and other organic crystal substances.

Technical Specifications:

Model DMP-600
Temperature Range Room Temperature to 320
Cooling Function NO
Resolution 0.1
Temperature Increase Speed 0.1-10 (100temperature point infinitely adjustable)
Temperature Control Method PID control temperature, fully closed design of furnace body
Accuracy 0.4(<250),0.7(>250)
Repeatability When 0.1/Min,repeatability 0.3
Display FTF High Solution Color Touch Screen
Output RS232 interface
Sample Tube external diameter 1.6mm, internal diameter :1.2mm
Voltage 100V-240V 50HZ-60HZ
Power 100W
Size & Weight 250mm*250mm*150mm & 1.2kg
